Premium industrial thermometers built for absolute accuracy and lasting reliability in HVAC and fluid control systems.
-Adjustable angle connection and 360. case rotation for easy Installation.
-Widely specified in the industrial and commercial Applications.
-Includes brass thermowell.
-Available with 63mm (2.5") or 1 OOmm (4") stem length.
-Organic filled tube (magnifying).
-Dual scale (•F & ·c). -± 1% accuracy.
-ASME 840.200 compliant.
-Adjustable angle connection and 360° case rotation for easy Installation.
-Widely specified in the industrial and commercial Applications.
-Includes a separable brass thermowell.
-Available with 90mm (3.5") or 150mm (6") stem length.
-Organic filled tube (magnifying).
-Dual scale (OF & oc). -± 1% accuracy.
-ASME 840.200 compliant.
-An all-purpose, economical thermometer with a vertical sensing tube and case.
-Straight or angle connection.
-Separable brass. or stainless steel thermowell.
-Impact resistant ABS case.
-Widely specifred in the industrial and commercial Applications.
-Organic frlled tube.
-Dual scale (•F & •c).
-ASME 840.200 and ASTM E2251 compliant.
-Glass thermometer in heavy duty protective housing.
-Reliable instrument with no moving parts.
-Available in 4.5" (11 Omm) or 6" (150mm) or 8" (200mm) scales.
-Choice of straight, goo angle or 135° angle cases.
-Brass socket l /2" NPT is standard (stainless steel optional).
-Wide choice of pocket lengths and temperature ranges.
-Organic f1lled tube.
-Dual scale (•F & oc).
-ASME 840.200 and ASTM E225l compliant.

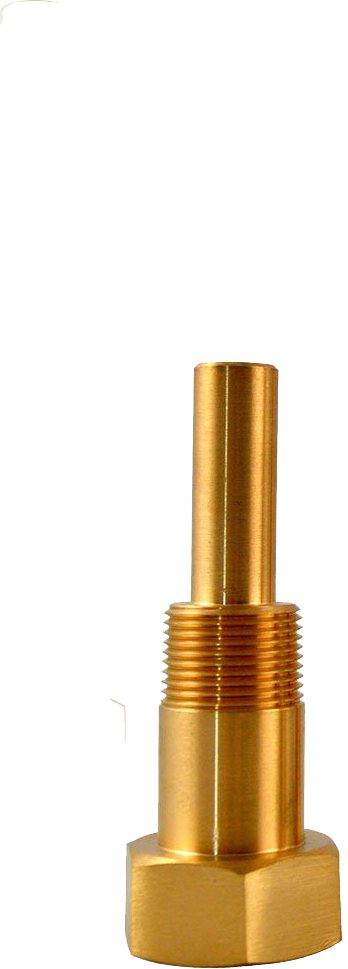

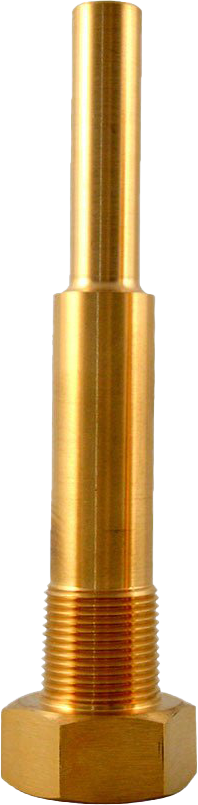

Thermowells are designed for use with ARSEN liquid-in-glass and solar industrial thermometers. They are inteded to separate and protect the thermometer from the process or media being measured and allow for the removal of the thermometer without shutting down the process. They are readily available in brass, type 304 stainless steel, or type 316 stainlesssteel construction to suit a wide rangeof applications. Other materials are available on request -consult fatory.
